Mosin Nagant Chassis-Handguard by "KPYK". Black

In 2015, "KRYK" teamembarked on an ambitious project to create a modern tuning package for morethan one hundred years old Mosin-Nagant rifle.

Why did they choose the Mosin?

Because it is one of the hardest forsuch tuning of rifles and of course - because we can!

The basic tasks was:

Task 1 - to bring ergonomics andease of use of a century-old rifle to the standards of modern weapons.

Task 2 - to realize the demount-ablemagazine.

Task 3 - give an opportunity in thepresence of a good barrel for an affordable price to get an accurate rifle.

Product features:

Strong octagonal handguard withadditional ribs for ultimate strength

M-LOK ™ interface for mountingvarious accessories

Compatible with AR type pistol grips

Buttstock is attached to a standardAR-type thread

Using V-shaped bedding technology

Compatibility with third-partytriggers

Materials:

a. Chassis - aluminium alloy 7075Т651.

b. Handguard - aluminium alloy 6082T6.

Production method - milling

In all hard loaded threads, we usespecial steel inserts that increase the possible tightening power of the screwsand increase the life of the thread itself.

We use Cerakote two-componentceramic coating for maximum protection of the surface.

In the all sets of our products screwswith a class of strength not lower than 10.9. We don't use low-strength softmaterials

In the complete set of CRC 7U001:

1. Chassis - aluminum alloy 7075T651.

2. Handguard - aluminum alloy 6082T6. Handguard has M-Lok accessories mounts. The kit includes 3 rails length of80mm.

This chassis accepts ProMag Archangel magazine.

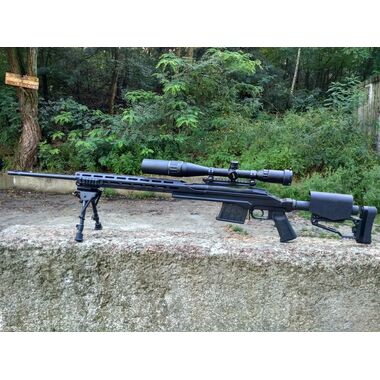

The buttstock shown is here.

NOTE: The kit only includes the chassis-handguard and 3 Picatinny rails.

The buttstock, magazine, scope mount and other accessories arepurchased separately.
